Aries AC-1501 EVO 2.0
BUILT FOR PRODUCTION ENGINEERED FOR PRECISION
Product Overview

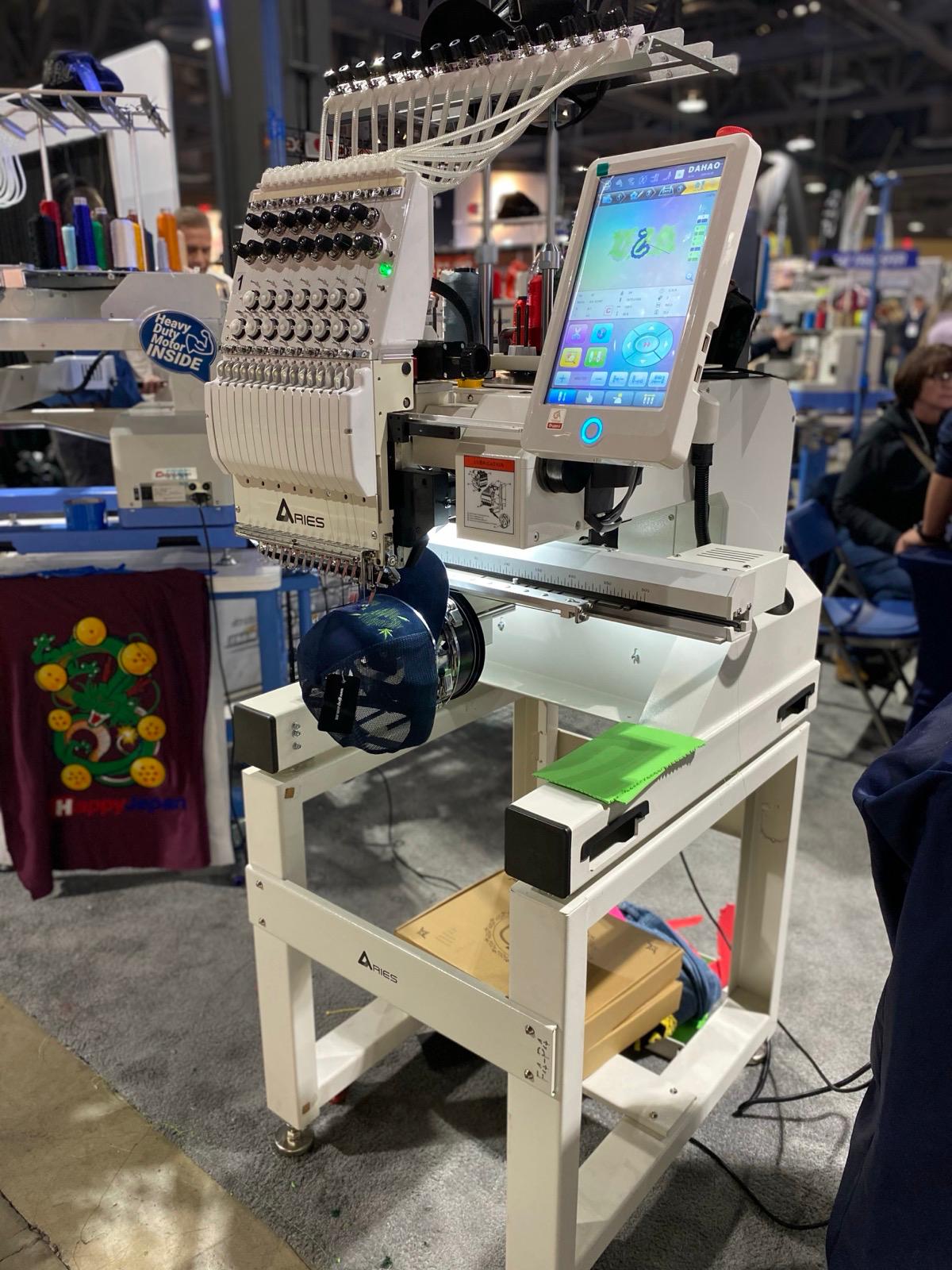

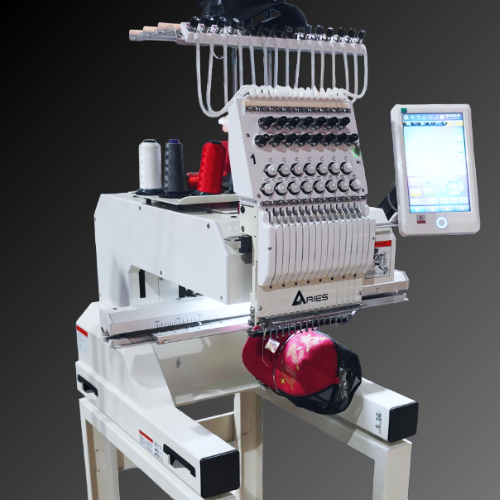

The Aries 1501 is a commercial-grade, 15-needle single-head embroidery machine built for professionals who demand consistency, speed, and control. Designed for growing embroidery businesses and production environments, it delivers premium stitch quality across garments, caps, bags, jackets, and uniforms — with automation that reduces fatigue and maximizes output.
REQUEST A QUOTEKey Features
- 15 needles & 15 color capability — ideal for multi-colored designs and complex embroidery jobs.
- Industrial motor with adjustable speed — up to ~1200 stitches per minute for high-volume production.
- Large embroidery field (~16 × 18 inches) — perfect for apparel logos, patches, and large designs.
- Automatic color changes, thread trimming & break detection — reduces manual intervention and errors.
- Cap embroidery support — excellent on 3D Puff for cap decoration thanks to IPF (Independent Presser Foot technology).
- 10″ high-definition LCD touchscreen — intuitive design selection and full machine control.
- Large internal memory — stores millions of stitches or hundreds of embroidery designs.
Accessories Included
Standard Accessories
- Heavy-duty machine stand with work table and rollers
- Complete tool kit (wrenches, screwdrivers, tweezers, oil, etc.)
- Bobbins & bobbin case set
- Embroidery cone thread set (multi-color)
- USB flash drive for design transfers

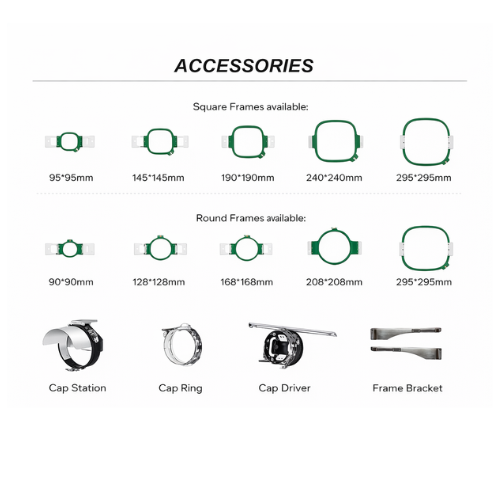

Frames & Hoops
- Multiple embroidered hoop sizes for garment versatility
- Round hoops (various diameters)
- Square hoops for jackets & larger designs
- Cap hoops and drivers for structured headwear work
Technical Specs
| Specification | Details |
|---|---|
| Model | ARIES AC-1501 |
| Machine Type | Computerized Embroidery Machine |
| Number of Heads | 1 |
| Needles per Head | 15 |
| Maximum Speed | ~1,200 stitches per minute (SPM) |
| Maximum Embroidery Area | ~16 in × 18 in |
| Cap Embroidery System | 270° wide-angle cap system |
| Embroidery Modes | Flat, Cap, Garment |
| Control Panel | Full-color LCD touch screen |
| Display Size | Approx. 7 in – 10.4 in |
| Design Input | USB |
| Memory Capacity | Supports millions of stitches |
| Drive System | High-torque servo motors |
| Thread Trimming | Automatic |
| Thread Break Detection | Yes |
| Emergency Stop | Yes |
| Power Supply | AC 100–240 V |
| Frequency | 50 / 60 Hz |
| Machine Width | ~28–30 in |
| Machine Depth | ~22–24 in |
| Machine Height | ~30–32 in |
| Net Weight | ~110–130 lb |

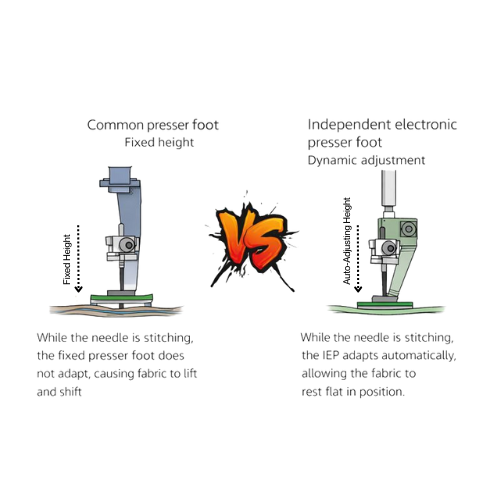

Independent Electronic Presser Foot (EVO 2.0)
Intelligent Fabric Control for Superior Embroidery
This Independent Electronic Presser Foot automatically adjusts presser foot height in real time. Unlike traditional fixed-height systems, it dynamically adapts to fabric thickness and stitch density — maintaining stable pressure and smooth fabric control throughout the embroidery process.
How It Improves Embroidery Quality
The IEP adjusts for every needle and color change, reducing fabric deformation and maintaining consistent stitch quality without manual intervention.
Key Advantages
- Automatic electronic height adjustment
- Consistent fabric control
- Reduced distortion and thread breakage
- Enhanced stitch clarity and uniformity
- Ideal for thick, layered & specialty materials
Ideal For
- Leather
- Knitted fabrics
- Cotton yarn
- Thick or layered materials
- Specialty & textured fabrics
- 3D / raised embroidery
The Aries 1501 is ideal for:
- Small & midsize embroidery businesses
- Custom apparel creators
- Print shops adding embroidery services
- Craft studios and fashion designers
It delivers professional-grade results with automation that scales production, improves consistency, and reduces operator fatigue — so your business can grow without limits.
